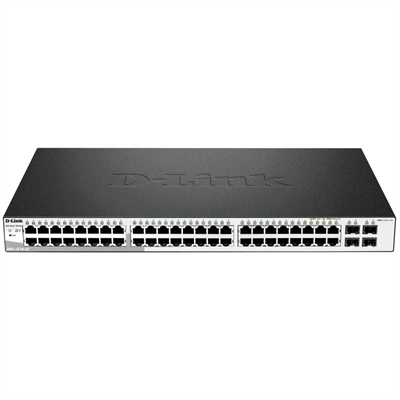

D-Link DGS-1210-52/E Switch 52xGB 4xSFP Combo
| Marca | DLink |
| Modelo | DGS-1210-52/E |
| Interfaz | - 48 x Puertos 10/100/1000BASE-TX | - 4 x Puertos SFP |
| Rendimiento | - Capacidad del switch: 104 Gbps | - 64-Byte Packet Forwarding Rate: 77.4 Mpps | - MAC Address Table Size: 16K | - Packet Buffer: 3 MB por dispositivo | - Jumbo Frame: hasta 9,216 Bytes |
| Características | Funcionalidades L2 | - MAC Address Table: 16K entries | - IGMP Snooping: | IGMP v1/v2 Snooping | Supports 256 IGMP groups | Supports at least 64 static multicast addresses | IGMP per VLAN | Supports IGMP Snooping Querier | - Loopback Detection | - 802.3ad Link Aggregation: | Maximum of 26 groups/8 ports per group | - LLDP | - LLDP-MED | - Jumbo Frame: Up to 9,216 bytes | - Spanning Tree Protocol: 802.1D STP | 802.1w RSTP | - Flow Control: 802.3x Flow Control | HOL Blocking Prevention | - Port Mirroring: One-to-One | Many-to-One | Supports Mirroring for Tx/Rx/Both | - Multicast Filtering: | Forwards all unregistered groups | Filters all unregistered groups | - Configurable MDI/MDIX: | MLD snooping v1/v2 (256 groups) | VLAN | - 802.1Q | - VLAN Group | Max. 256 static VLAN groups | - Configurable VID from 1 - 4094 | - Asymmetric VLAN | - Auto Voice VLAN | Max. 10 user-defined OUI | Max. 8 default OUI | - Auto Surveillance VLAN | Calidad de servicios (QoS) | - 802.1p Quality of Service | - 8 queues per port | - Queue Handling | Strict | Weighted Round Robin (WRR) | - Bandwidth Control | Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) | - QoS based on: | 802.1p Priority Queues | DSCP | ToS | IPv6 Traffic Class | TCP/UDP port | Funcionalidades L3 | - IP Interface | Supports 1 interface | - IPv6 Neighbor Discovery (ND) | Lista de conrol de acceso (ACL) | - Max. 50 access list | - Max. 768 rules shared by IPv4, MAC and IPv6 | - Each rule can only be associated with a single port | - ACL based on | 802.1p priority | VLAN | MAC address | - Ether type | - IP address | - DSCP | - Protocol type | - TCP/UDP port number | - IPv6 Traffic Class | Seguridad | - Broadcast/Multicast/Unicast Storm Control | - D-Link Safeguard Engine | - DHCP Server Screening | - IP-MAC-Port Binding (Smart Binding) | Supports 512 address binding entries | ARP Inspection | ARP + IP Inspection | Supports DHCP Snooping | - 802.1X Port-based Access Control | - ARP Spoofing Prevention | Max. 64 entries | - Traffic Segmentation | - SSH v2 | - SSL | Supports v1/v2/v3 | - Port Security | Supports up to 64 MAC addresses per port | - Duplicate address detection | AAA | - 802.1X Authentication | Supports local/RADIUS database | Supports port-based access control | Supports EAP, OTP, TLS, TTLS, PEAP | - IPv6 RADIUS Server | - Support MD5 authentication | Gestión | - Web-based GUI | - D-Link Network Assistant Utility | - Compact CLI | - Telnet Server | - TFTP Client | - Configurable MDI/MDIX | - SNMP | Supports v1/v2c/v3 | - SNMP Trap | - Backup/Upgrade firmware | - Smart Wizard | - Upload/Download Configuration file | - System Log | Max. 500 log entries | - BootP/DHCP Client | - SNTP | - ICMP v6 | - IPv4/v6 Dual Stack | - DHCP Auto Configuration | - Time Setting | SNTP | - RMONv1 | - Trusted Host |
| Físicas | - Consumo (Standby/Max.): 29.49W / 38.27W | - Alimentación: 10 a 240 VAC, 50/60HZ fuente de alimentación interna | - Dimensiones (An x Prof x Alt): 440 x 210 x 44 mm | - Peso: 2.58 kg | - Ventilación: Ventiladores inteligentes |
Especificaciones
| Marca | D-LINK |
| Características | Funcionalidades L2|MAC Address Table: 16K entries|IGMP Snooping:|IGMP v1/v2 Snooping|Supports 256 IGMP groups|Supports at least 64 static multicast addresses|IGMP per VLAN|Supports IGMP Snooping Qu... |
| Interfaz | 48 x Puertos 10/100/1000BASE-TX|4 x Puertos SFP |
| Rendimiento | Capacidad del switch: 104 Gbps|64-Byte Packet Forwarding Rate: 77.4 Mpps|MAC Address Table Size: 16K|Packet Buffer: 3 MB por dispositivo|Jumbo Frame: hasta 9,216 Bytes |
| Físicas | Consumo (Standby/Max.): 29.49W / 38.27W|Alimentación: 10 a 240 VAC, 50/60HZ fuente de alimentación interna|Dimensiones (An x Prof x Alt): 440 x 210 x 44 mm|Peso: 2.58 kg|Ventilación: Ventiladores i... |
