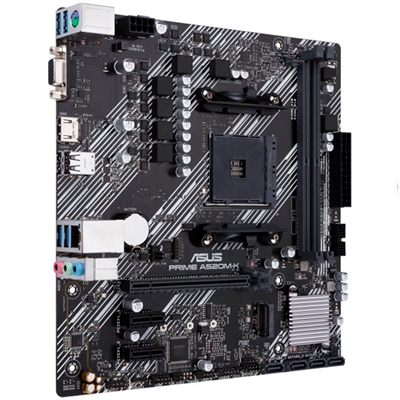

Asus Placa Base PRIME A520M-K mATX AM4
| Marca | Asus |
| Modelo | PRIME B520M-K (90MB1500-M0EAY0) |
| Plataforma | - m-ATX (22.6 cm x 22.1 cm) |
| Chipset | - AMD® A520 |
CPU Soportados | - Admite procesadores con Socket AMD AM4 |
| Memoria | - 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory | - Dual Channel Memory Architecture | - ECC Memory (ECC mode) |
Slots Expansión | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors | - 1 x PCIe 3.0 x16 (x16 mode) | AMD B550 Chipset | - 2 x PCIe 3.0 x1 |
| Gráficos | - 1 x D-Sub | - 1 x HDMI 2.1(4K@60HZ) |
Puertos E/S, Conectores | Internos - 1 x CPU Fan | - 1 x Chassis Fan | - 1 x USB 3.2 Gen 1 | - 2 x USB 2.0 | - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 | - 1 x SPI TPM header | - 4 x SATA 6Gb/s | - 1 x S/PDIF out header | - 1 x 24-pin EATX Power | - 1 x 8-pin EATX 12V Power | - 1 x Front panel audio (AAFP) | - 1 x Clear CMOS jumper | - 1 x System panel | - 1 x COM port header | - 1 x Speaker | Externos - 1 x PS/2 keyboard/mouse combo port(s) | - 1 x D-Sub | - 1 x HDMI | - 1 x LAN (RJ45) port(s) | - 4 x USB 3.2 Gen 1 (blue) Type-A | - 2 x USB 2.0 | - 3 x Audio jack(s) |
Otras Características | Almacenamiento | - 1 x M.2 | - 4 x SATA 6Gb/s | - Soporta Raid 0, 1, 10 | USB | - 4 x USB 3.2 Gen 1 (4 x Type-A) | - 2 x USB 2.0 (2 x Type-A) | - 2 x USB 3.2 Gen 1 (2 x Type-A) | - 4 x USB 2.0 (4 x Type-A) | Red | - Realtek RTL8111H 1Gb Ethernet | - ASUS LANGuard | Audio | - Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC |
Especificaciones
| Marca | ASUS |
| Memoria | 2 x DIMM, Max. 64GB,DDR44600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory|Dual Channel Memory Architecture|E... |
| Otrascaracterísticas | Almacenamiento|1 x M.2|4 x SATA 6Gb/s|SoportaRaid 0, 1, 10|USB|4 x USB 3.2 Gen 1 (4 x Type-A)|2 x USB 2.0 (2 x Type-A)|2 x USB 3.2 Gen 1 (2 x Type-A)|4 x USB 2.0 (4 x Type-A)|Red|Realtek RTL8111H 1... |
| Gráficos | 1 x D-Sub|1 x HDMI 2.1(4K@60HZ) |
| Plataforma | m-ATX (22.6 cm x 22.1 cm) |
| Chipset | AMD® A520 |
| CPUSoportados | Admite procesadores con Socket AMDAM4 |
| Slots Expansión | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors|1 x PCIe 3.0 x16 (x16 mode)|AMD B550 Chipset|2 x PCIe 3.0 x1 |
| Puertos E/S,Conectores | Internos1 x CPU Fan|1 x Chassis Fan|1 x USB 3.2 Gen 1|2 x USB 2.0|1 x M.2 Socket 3 with M key, type 2242/2260/2280|1 x SPI TPM header|4 x SATA 6Gb/s|1 x S/PDIF out header|1 x 24-pin EATX Power|1 x ... |
