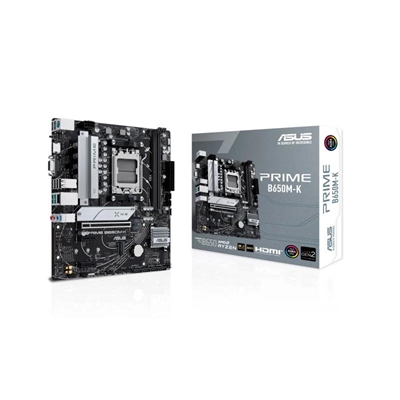

ASUS Placa Base PRIME B650M-K mATX AM5 | Tienda Rialho

Marca	Asus
Modelo	90MB1F60-M0EAY0
Plataforma	- mATX (24,4 cm x 21,1 cm)
Chipset	- Intel B650
CPU Soportados	- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Memoria	- 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* \| - Dual Channel Memory Architecture \| - Supports AMD Extended Profiles for Overclocking (EXPO™) \| - OptiMem II
Slots Expansión	- 1 x PCIe 4.0 x16 slot (supports x16 mode) \| - 2 x PCIe 4.0 x1 slots
Gráficos	- 1 x VGA \| - 1 x HDMI
Puertos E/S, Conectores	Conectores Internos E/S - 1 x 4-pin CPU Fan header \| - 2 x 4-pin Chassis Fan headers \| - 1 x 24-pin Main Power connector \| - 1 x 8-pin +12V Power connector \| - 2 x M.2 slots (Key M) \| - 4 x SATA 6Gb/s ports \| - 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) \| - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports \| - 2 x USB 2.0 headers support 4 additional USB 2.0 ports \| - 2 x Addressable Gen 2 headers \| - 1 x Aura RGB header \| - 1 x Clear CMOS header \| - 1 x COM Port header \| - 1 x Front Panel Audio header (AAFP) \| - 1 x S/PDIF Out header \| - 1 x Speaker header \| - 1 x SPI TPM header (14-1pin) \| - 1 x 10-1 pin System Panel header Panel E/S Trasero - 2 x USB 3.2 Gen 2 ports (2 x Type-A) \| - 2 x USB 3.2 Gen 1 ports (2 x Type-A) \| - 4 x USB 2.0 ports (4 x Type-A) \| - 1 x VGA port \| - 1 x HDMI port \| - 1 x Realtek 2.5Gb Ethernet port \| - 3 x Audio jacks \| - 1 x BIOS FlashBack button \| - 1 x PS/2 Keyboard/Mouse combo port
Otras Características	Audio \| - Realtek 7.1 Surround Sound High Definition Audio CODEC* \| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking \| - Supports up to 24-Bit/192 kHz playback \| - Audio Shielding \| - Premium audio capacitors \| - Dedicated audio PCB layers \| LAN \| - 1 x Ethernet Realtek de 2,5 Gb \| Almacenamiento \| - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) \| - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) \| - 4 x SATA 6Gb/s ports \| USB \| - 2 x USB 3.2 Gen 2 ports (2 x Type-A) \| - 2 x USB 3.2 Gen 1 ports (2 x Type-A) \| - 4 x USB 2.0 ports (4 x Type-A) \| - 1 x USB 3.2 Gen 1 connector (supports USB Type-C) \| - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports \| - 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Especificaciones

Memoria	2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory\|Dual Channel Memory Architecture\|Supports AMD Extended Profiles ..., 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory \| Dual Channel Memory Architecture \| Supports AMD Extend...
Otrascaracterísticas	Audio\|Realtek 7.1 Surround Sound High Definition Audio CODEC\|Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking\|Supports up to 24-Bit/192 kHz playback\|Audio Shielding\|Premium au..., Audio\| Realtek 7.1 Surround Sound High Definition Audio CODEC \| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking \| Supports up to 24-Bit/192 kHz playback \| Aud...
Marca	ASUS
Gráficos	1 x VGA\|1 x HDMI
Plataforma	mATX (24,4 cm x 21,1 cm)
Chipset	-Intel B650
CPUSoportados	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Slots Expansión	1 x PCIe 4.0 x16 slot (supports x16 mode)\|2 x PCIe 4.0 x1 slots
Puertos E/S,Conectores	Conectores Internos E/S1 x 4-pin CPU Fan header\|2 x 4-pin Chassis Fan headers\|1 x 24-pin Main Power connector\|1 x 8-pin +12V Power connector\|2 x M.2 slots (Key M)\|4 x SATA 6Gb/s ports\|1 x USB 3.2 G...
Gráficos	1 x VGA \| 1 x HDMI
Plataforma	mATX (24,4 cm x 21,1 cm)
Chipset	-Intel B650
CPUSoportados	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Slots Expansión	1 x PCIe 4.0 x16 slot (supports x16 mode) \| 2 x PCIe 4.0 x1 slots
Puertos E/S,Conectores	Conectores Internos E/S1 x 4-pin CPU Fan header \| 2 x 4-pin Chassis Fan headers \| 1 x 24-pin Main Power connector \| 1 x 8-pin +12V Power connector \| 2 x M.2 slots (Key M) \| 4 x ...
