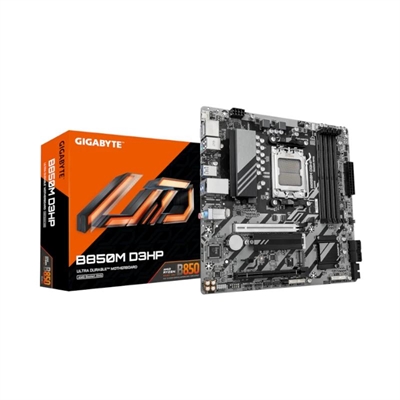

Gigabyte Placa Base B850M D3HP mATX AM5
| Marca | Gigabyte |
| Modelo | B850M D3HP |
| Plataforma | - Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | - AMD B850 |
| CPU Soportados | - AMD Socket AM5, support for: | AMD Ryzen™ 9000 Series Processors | AMD Ryzen™ 8000 Series Processors | AMD Ryzen™ 7000 Series Processors |
| Memoria | - Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / | 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / | 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules | - 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | - Dual channel memory architecture | - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | - Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Slots Expansión | - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: | AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | - Chipset: | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Gráficos | - Integrated Graphics Processor with AMD Radeon™ Graphics support: | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | ** Support for native HDMI 2.1 TMDS compatible ports. | - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz | * Support for DisplayPort 1.4 version. |
|
Puertos E/S,
Conectores
|
Conectores Internos | - 1 x 24-pin ATX main power connector | - 1 x 8-pin ATX 12V power connector | - 1 x CPU fan header | - 1 x CPU fan/water cooling pump header | - 1 x system fan header | - 1 x system fan/water cooling pump header | - 2 x addressable RGB Gen2 LED strip headers | - 1 x RGB LED strip header | - 2 x M.2 Socket 3 connectors | - 4 x SATA 6Gb/s connectors | - 1 x front panel header | - 1 x front panel audio header | - 1 x USB Type-C® header, with USB 3.2 Gen 1 support | - 1 x USB 3.2 Gen 1 header | - 2 x USB 2.0/1.1 headers | - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | - 1 x reset jumper | - 1 x Clear CMOS jumper | Panel Trasero | - 1 x HDMI port (Note) | - 2 x DisplayPorts (Note) | - 1 x PS/2 keyboard/mouse port | - 1 x Q-Flash Plus button | - 1 x USB Type-C® port, with USB 3.2 Gen 1 support | - 3 x USB 3.2 Gen 1 ports | - 2 x USB 2.0/1.1 ports | - 1 x RJ-45 port | - 3 x audio jacks |
|
Otras
Características
|
Almacenamiento
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
- 4 x SATA 6Gb/s connectors |
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB |
- CPU: |
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
1 x USB 3.2 Gen 1 port on the back panel |
1 x USB 2.0/1.1 port on the back panel |
- Chipset: |
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
Audio
- Realtek® Audio CODEC |
- High Definition Audio |
- 2/4/5.1/7.1-channel
LAN
|
Especificaciones
| Marca | GIGABYTE |
| Memoria | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) /|7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /|6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules|... |
| Otrascaracterísticas | Almacenamiento1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:|AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs|AMD Ryzen™ 8000... |
| Gráficos | Integrated Graphics Processor with AMD Radeon™ Graphics support:|1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz|* Support for HDMI 2.1 version, HDCP 2.3, and HDR.|** Support for ... |
| Plataforma | - Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | AMD B850 |
| Slots Expansión | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:|AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode|AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode|AMD ... |
| Puertos E/S,Conectores | Conectores Internos|1 x 24-pin ATX main power connector|1 x 8-pin ATX 12V power connector|1 x CPU fan header|1 x CPU fan/water cooling pump header|1 x system fan header|1 x system fan/water cooling... |
| CPU Soportados | AMD Socket AM5, support for:|AMD Ryzen™ 9000 Series Processors|AMD Ryzen™ 8000 Series Processors|AMD Ryzen™ 7000 Series Processors |
