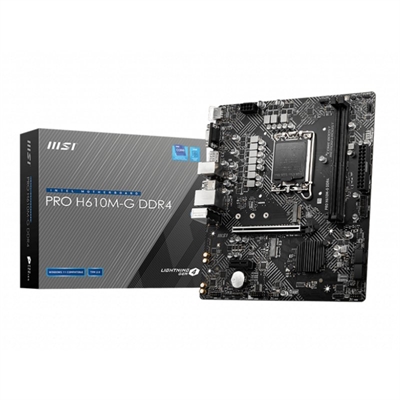

MSI Placa Base PRO H610M-G DDR4 mATX 1700
| Marca | MSI |
| Modelo | 911-7D46-003 |
| Plataforma | - mATX (23.6 cm x 20.2 cm) |
| Chipset | - Intel® H610 Chipset |
| CPU Soportados |
- Admite procesadores Intel Core, Pentium Gold y Celeron de 12ª, 13ª y 14ª generación | - Zócalo del procesador LGA1700 |
| Memoria | - 2 x DDR4, soporta hasta 64GB | - Soporta 1R 2133/ 2666/ 3200 MHz (por JEDEC y POR) | - Admite el modo de doble canal | - Admite memoria sin búfer ni ECC |
|
Slots Expansión
|
- 1x PCIe x16 slot (From CPU) | - 1x PCIe x1 slot | - 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Gráficos | - 1x HDMI 2.1 with HDR port, a maximum resolution of 4K 60Hz 1 2 | - 1x VGA port, a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1 | - 1x DisplayPort 1.4 port, a maximum resolution of 4K 60Hz |
|
Puertos E/S,
Conectores
|
Conectores Internos E/S
- 1x Intel® I219V 1Gbps LAN controller |
- 1x 24-pin ATX main power |
- 1x 8-pin ATX 12V power |
- 1x 4-pin CPU fan |
- 1x 4-pin system fan |
- 1x Front panel audio |
- 2x System panel s |
- 1x Chassis Intrusion |
- 1x TPM module |
- 1x Clear CMOS jumper |
Panel E/S Trasero
|
|
Otras
Características
|
USB | - Intel® H610 Chipset | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) | 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) | Almacenamiento | - 4x SATA 6Gb/s ports | Audio | - Realtek® ALC892/ ALC897 Codec | - 7.1-Channel High Definition Audio | LAN | - 1x Intel® I219V 1Gbps LAN controller | Sistema Operativo | - Soporte para Windows 11 64-bit |
Especificaciones
| Marca | MSI |
| Memoria | 2 xDDR4, soporta hasta 64GB|Soporta 1R 2133/ 2666/ 3200 MHz (por JEDEC y POR)|Admite el modo de doble canal|Admite memoria sin búfer ni ECC |
| Otrascaracterísticas | USB|Intel® H610 Chipset|4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)|6x USB 2.0 ports (4 Type-A ports on the back panel(hub-... |
| Gráficos | 1x HDMI 2.1 with HDR port, a maximum resolution of 4K 60Hz 1 2|1x VGA port, a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1|1x DisplayPort 1.4 port, a maximum resolution of ... |
| Plataforma | mATX (23.6 cm x 20.2 cm) |
| Chipset | Intel® H610 Chipset |
| CPUSoportados | Admite procesadores Intel Core, Pentium Gold y Celeron de 12ª, 13ª y 14ª generación|Zócalo del procesadorLGA1700 |
| Slots Expansión | 1x PCIe x16 slot (From CPU)|1x PCIe x1 slot|1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Puertos E/S,Conectores | Conectores Internos E/S1x Intel® I219V 1Gbps LAN controller|1x 24-pin ATX main power|1x 8-pin ATX 12V power|1x 4-pin CPU fan|1x 4-pin system fan|1x Front panel audio|2x System panel s|1x Chassis In... |
