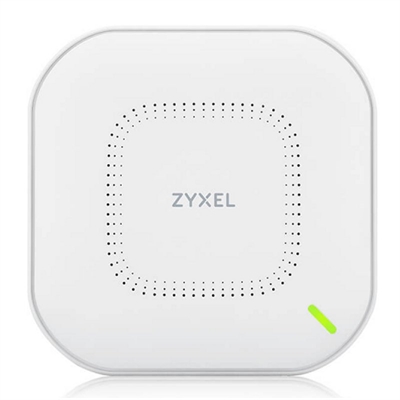

Zyxel WAX610D Punto Acc WiFi6 Nebula 4x4 1xMGbE
| Marca | ZyXEL |
| Modelo | WAX610D-EU0101F |
| Características Hardware | - Ethernet port | 1 x 10/100/1000/2500M LAN | 1 x 10/100/1000M LAN | - Power | PoE (802.3)at: power draw 19.5 W | DC input : 12 VDC 2A | - Antenna type: 4x4 + 2x2 dual-optimized antenna | - Antenna gain | 2.4GHz: Peak Gain 5dBi | 5GHz: Peak Gain 6dBi | Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm | - Band Steering: Yes | - WDS/Mesh: Yes (V6.10) | - Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v | - DCS (Auto Channel): Yes | - Load balancing: Yes |
| Características Inalámbricas | - Standard: IEEE802.11 ax/ac/n/g/b/a | - MIMO: MU-MIMO | - Wireless speed: | 2.4GHz: 575Mbps | 5GHz: 2400Mbps | - Frequency band: | 2.4 GHz | USA (FCC): 2.412 to 2.462 GHz | Europe (ETSI): 2.412 to 2.472 GHz | 5 GHz (IEEE 802.11 a/n/ac) | USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz | European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz | - Bandwidth: 20-, 40- ,80- and 160-MHz | - Conducted typical transmit output power: | US (2.4GHz/5GHz): 23/28dBm | EU (2.4GHz/5GHz): 19/25dBm | - IPv6 | - VLANs | - WMM | - U-APSD | - DiffServ marking |
| Gestión | - Operating mode: | Nebula Cloud managed | Controller-managed | Standalone | - ZON Utility: | Discovery of Zyxel switches, APs and gateways | Centralized and batch configurations | IP configuration | IP renew | Device factory reset | Device reboot | Device locating | Web GUI access | Firmware upgrade | Password configuration | - Zyxel Wireless Optimizer: | WiFi AP planning | WiFi coverage detection | Wireless health management | - Web UI/CLI: Yes | - SNMP: Yes |
| Otras Características | Físicas - Dimensiones (An. x Pr. x Al.) (mm/pulg.): 180 x 180 x 39/7.09 x 7.09 x 1.54 - Peso (g/lb.): 545/1.20 - MTBF (h): 329,004 Seguridad - Encryption WEP WPA WPA2-PSK/WPA3 - Authentication WPA WPA2 WPA3-Enterprise EAP IEEE 802.1X RADIUS authentication - Access management L2-isolation MAC filtering Rogue AP detection Entorno - Temperatura de funcionamiento 0°C a 50°C / 32°F a 122°F - Humedad de funcionamiento 10% a 95% (sin condensación) - Temperatura de almacenamiento -30°C to 70°C/-22°F to 158°F - Humedad de almacenamiento 10% a 90% (sin condensación) Certificaciones - Radio FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 - EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 - Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 Contiene - Placa de montaje - Tornillos de montaje |
Especificaciones
| Marca | ZYXEL |
| Características Hardware | Ethernet port|1 x 10/100/1000/2500M LAN|1 x 10/100/1000M LAN|Power|PoE (802.3)at: power draw 19.5 W|DC input : 12 VDC 2A|Antenna type: 4x4 + 2x2 dual-optimized antenna|Antenna gain|2.4GHz: Peak Gai... |
| Características inalámbricas | Standard: IEEE802.11 ax/ac/n/g/b/a|MIMO: MU-MIMO|Wireless speed:|2.4GHz: 575Mbps|5GHz: 2400Mbps|Frequency band:|2.4 GHz|USA (FCC): 2.412 to 2.462 GHz|Europe (ETSI): 2.412 to 2.472 GHz|5 GHz (IEEE 8... |
| Gestión | Operating mode:|Nebula Cloud managed|Controller-managed|Standalone|ZON Utility:|Discovery of Zyxel switches, APs and gateways|Centralized and batch configurations|IP configuration|IP renew|Device f... |
