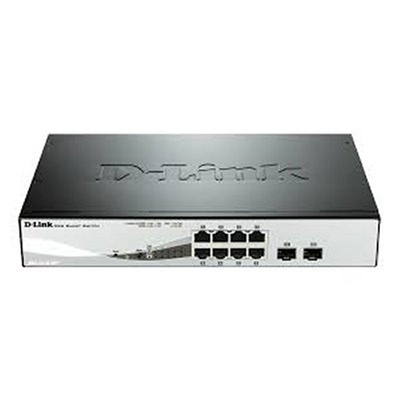

D-Link DGS-1210-08P/E Switch 8xGB PoE 2xSFP

- 8 puertos 10/100/1000 Mbps

Standards | - IEEE 802.3 compliant | - IEEE 802.3u compliant | - IEEE 802.3ab compliance | - Soporta Half/Full-duplex operation at 10/100Mbps | - Soporta Full-duplex operation at 1000Mbps | - Soporta Auto-Negotiation for each port | - Auto MDI/MDIX | - IEEE 802.3x Flow Control support | - IEEE 802.3az compliant

Rendimiento: |   20Gbps | - Max.velocidad envío |   14.9 Mpps | - Tamaño tabla MAC |   16K Entries | - Packet Buffer |   6Mbits

- Jumbo Frame |   Hasta 13,000 Bytes | - Alimentación: |   110 to 240 VAC, 50/60HZ internal universal power supply | - Max.Consumo |   60 Watts | - Consumo Standy |   5.6 Watts | - Sin ventilador | - Nivel acústico: |   0 dBA | - Dimensions (W x D x H) |   280 x 180 x 44 mm

  19-inch standard rack |   1U | - Peso: |   0.42kg | - LEDs |   Power (per device) |   Link/Activity/Speed/PoE (per 10/100/1000 Mbps port) |   Link/Activity/Speed (per SFP port) |   Button to switch LED display mode between PoE and Link/ActivityPower (per device) | - Certifications |   CE Class A |   cUL, LVD | - MTBF |   503,585 Hours (DGS-1100-08) | Funciones L2 | - MAC Address Table: 16K | - Flow Control |     802.3x Flow Control |     HOL Blocking Prevention | - Jumbo Frame up to 13,000 Bytes | - IGMP Snooping |     IGMP v1/v2 Snooping |     IGMP Snooping v3 Awareness |     Supports 256 IGMP groups |     Supports at least 64 static multicast addresses |     IGMP per VLAN |     Supports IGMP Snooping Querier | - MLD Snooping1 |     Supports MLD v1/v2 awareness |     Supports 256 groups |     Fast Leave | - Spanning Tree Protocol |     802.1D STP |     802.1w RSTP | - Loopback Detection | - 802.3ad Link Aggregation |     DGS-1210-10P: Max. 5 groups per device/8 ports per group |     DGS-1210-20: Max. 10 groups per device/8 ports per group |     DGS-1210-28/28P: Max. 14 groups per device/8 ports per group |     DGS-1210-52: Max. 26 groups per device/8 ports per group |     DGS-1210-16/24/48: Max. 8 groups per device/8 ports per group | - Port Mirroring |     One-to-One, Many-to-One |     Supports Mirroring for Tx/Rx/Both | - Multicast Filtering |     Forwards all unregistered groups |     Filters all unregistered groups |     LLDP, LLDP-MED | VLAN | - 802.1Q Tagged VLAN | - VLAN Group |     Max. 256 static VLAN groups |     Max. 4094 VIDs | - Management VLAN | - Asymmetric VLAN | - Auto Voice VLAN |     Max. 10 user-defined OUI |     Max. 8 default OUI | - Auto Surveillance VLAN | Quality of Service (QoS) | - 802.1p Quality of Service | - Queue Handling |     Strict |     Weighted Round Robin (WRR) | - 8 queues per port | - Bandwidth Control |     Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s) | - CoS based on |     802.1p Priority Queues |     DSCP |     ToS |     TCP/UDP port number |     IPv6 traffic class1 | Access Control List (ACL) | - Max. 50 profiles | - Max. 200 rules shared by profiles | - Single or multiple ports (each rule) | - ACL based on |     MAC Address |     IPv4 Address (ICMP/IGMP/TCP/UDP) |     IPv6 Address (ICMP/TCP/UDP)1 |     802.1p |     DSCP |     Ether type |     IPv6 traffic class1 | - ACL Actions |     Permit |     Deny | Seguridad | - Port Security |     Supports up to 64 MAC addresses per port | - Broadcast/Multicast/Unicast Storm Control | - Static MAC | - D-Link Safeguard Engine | - DHCP Server Screening | - Trusted Host | - ARP Spoofing Prevention |     Max. 64 entries | - SSL |     Supports v1/v2/v3 |     Supports IPv4/IPv6 | - Traffic Segmentation | - Smart Binding1 |     Discover connected devices and click to bind |     ARP Packet Inspection: 512 entries |     IP Packet Inspection: 128 entries |     Supports DHCP Snooping | AAA | - 802.1X Port-based Authentication |     Supports RADIUS Server |     Supports EAP, OTP, TLS, TTLS, PEAP | OAM | - Cable Diagnostics | - Factory Reset | MIB | - 1213 MIB II | - 1493 Bridge MIB | - 1907 SNMP v2 MIB | - 1215 Trap Convention MIB | - 2233 Interface Group MIB | - D-Link Private MIB | - Power-Ethernet MIB | - LLDP MIB | - D-Link ZoneDefense MIB1 | RFC Standard Compliance | - RFC 783 TFTP | - RFC 854 Telnet Server | - RFC 951 BootP/DHCP Client | - RFC 1157 SNMP v1, v2, v3 | - RFC 1213 MIB II, IF MIB | - RFC 1215 MIB Traps Convention | - RFC 1350 TFTP | - RFC 1493 Bridge MIB | - RFC 1542 BootP/DHCP Client | - RFC 1769 SNTP | - RFC 1901 SNMP v1, v2, v3 | - RFC 1907 SNMP v2 MIB | - RFC 1908 SNMP v1, v2, v3 | - RFC 2068 FCS | - RFC 2131 BootP/DHCP Client | - RFC 2138 RADIUS Authentication | - RFC 2139 RADIUS Authentication | - RFC 2233 Interface Group MIB | - RFC 2246 SSL | - RFC 2475 | - RFC 2570 SNMP v1, v2, v3 | - RFC 2575 SNMP v1, v2, v3 | - RFC 2598 CoS | - RFC 2616 FCS | - RFC 2618 RADIUS Authentication | - RFC 2819 RMON v1 | - RFC 2865 RADIUS Authentication | - RFC 3164 System Log | - RFC 3195 System Log | - RFC 3411-17 SNMP | - RFC 3621 Power Ethernet MIB | Gestión | - Multi-Language Web-based GUI |     English (default) |     Simplified Chinese1 |     Traditional Chinese1 |     French1 |     German1 |     Italian1 |     Japanese1 |     Portuguese1 |     Russian1 |     Spanish1 | - SmartConsole Utility2 | - Simplified CLI | - Telnet Server | - TFTP Client | - IPv6 Neighbor Discovery | - Configurable MDI/MDIX | - SNMP |     Supports v1, v2, v3 | - SNMP Trap | - System Log |     Max. 500 log entries | - BootP/DHCP Client | - D-Link Network Assistant support1 | - SNTP | - ICMPv6 | - IPv4/v6 Dual Stack1 | - DHCP Auto Configuration | - RMON v1 | D-Link Green 3.0 Technology | - Power Saving by: |     Link Status |     Cable Length detection |     LED or Port Shutoff |     Port Standby mode |     System Hibernation mode |     Time-based PoE (PoE model only)
