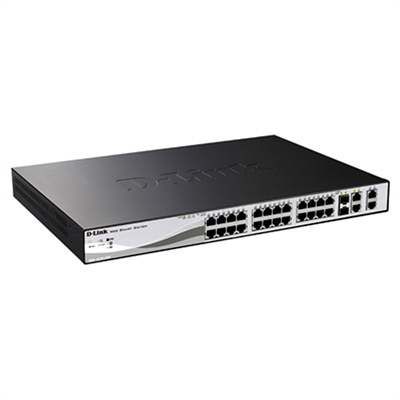

D-Link DGS-1210-28P/E Switch 24xGb PoE 4xSFP Combo
| Marca | D-Link |
| Modelo | DGS-1210-28P/E |
| Conexiones | 24 x 10/100/1000 PoE + 4 x SFP |
| Funciones |
Funciones L2 |
MAC Address Table: 8K |
Flow Control |
Jumbo Frame up to 13,000 Bytes |
IGMP Snooping |
MLD Snooping |
Spanning Tree Protocol |
Loopback Detection |
802.3ad Link Aggregation |
Port Mirroring |
Multicast Filtering |
VLAN |
802.1Q Tagged VLAN |
VLAN Group |
Management VLAN |
Asymmetric VLAN |
Auto Voice VLAN |
Quality of Service (QoS) |
802.1p Quality of Service |
Queue Handling |
4 queues per port |
Bandwidth Control
Access Control List (ACL) |
Max. 50 profiles |
Max. 200 rules shared by profiles |
Single or multiple ports (each rule)
Seguridad |
Broadcast/Multicast/Unicast Storm Control |
Static MAC |
D-Link Safeguard Engine |
DHCP Server Screening |
Trusted Host |
ARP Spoofing Prevention |
SSL 2 |
Smart Binding
|
| PoE |
- Puerto 1~4: máximo power es de 30W y 15.4W por defecto |
- Puerto 5~24 máximo power es de 15.4W y por defecto es 15.4W
|
| Otras características |
- Capacidad de flujo: 12.8 Gbps
- Modo de reenvío: Store and Forward - Web-based GUI compatible con los siguientes navegadores: IE6/7 or later version, Netscape 8 or later version Mozilla - Firefox 1.5/2.0 or later version Consumo - Máximo: 254 Watts (PoE on), 26.4 Watts (PoE off) - Standby : 17.6 W/110V, 15.1 W/240V Fuente de Alimentación - Internal universal power supply - AC Input: 2.215A@115V, 1.293A@230V - Dimensiones: 440 x 250 x 44 mm - Peso: 3.69 kg - Número de ventiladores: 3 - Disipación de calor: 866.65 BTU/hr - Ruido:53.9 dB (A) |
Especificaciones
| Marca | D-LINK |
| Conexiones | 24 x 10/100/1000 PoE + 4 x SFP |
| Funciones | Funciones L2|MAC Address Table: 8K|Flow Control|Jumbo Frame up to 13,000 Bytes|IGMP Snooping|MLD Snooping|Spanning Tree Protocol|Loopback Detection|802.3ad Link Aggregation|Port Mirroring|Multicast... |
| PoE | Puerto 1~4: máximo power es de 30W y 15.4W por defecto|Puerto 5~24 máximo power es de 15.4W y por defecto es 15.4W |
