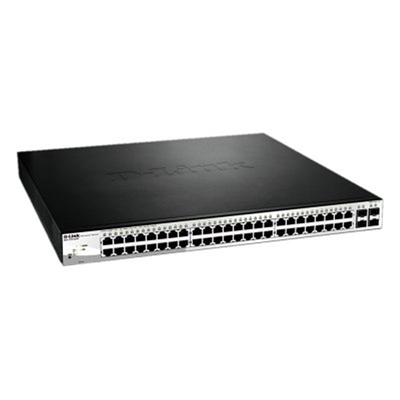

D-Link DGS-1210-52MP/E Switch 48xGb PoE 4xSFP Comb
| Marca | D-Link |
| Modelo | DGS-1210-52MP/E |
| Características |
- Puertos 10/100 /1000BASE-TX: 48 puertos |
- Puertos SFP: 4 Puertos
- Capacidad de switch: 104 Gbps |
- Tamaño de la tabla de direcciones MAC: 16K |
- Buffer de paquetes: 3 MB por dispositivo |
- Consumo(Standby/Máximo): 48.9W / 483.1W (PoE) |
- Dimensiones: 440 x 430 x 44 mm |
- Peso: 5.78 kg |
- Ventilación: Ventilador inteligente |
- Temperatura: |
Operación: -5° a 50°C (23° a 112°F) |
Almacenamiento: -20° a 70°C (-4° a 158°F) |
- Humedad |
Operación: 0% ~ 95% sin condensación |
Almacenamieno: 0% ~ 95% sin condensación |
- Certificación: CE Class A, VCCI Class A, FCC
Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
L2 Features |
MAC Address Table |
- 16K entries |
IGMP Snooping |
- IGMP v1/v2 Snooping |
- Supports 256 IGMP groups |
- Supports at least 64 static multicast addresses |
- IGMP per VLAN |
- Supports IGMP Snooping Querier |
Loopback Detection |
802.3ad Link Aggregation: |
- DGS-1210 28/28P: Maximum of 14 groups/8 ports per group |
- DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group |
- DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group |
LLDP |
LLDP-MED |
Jumbo Frame |
- Up to 9,216 bytes |
Spanning Tree Protocol |
- 802.1D STP |
- 802.1w RSTP |
Flow Control |
- 802.3x Flow Control |
- HOL Blocking Prevention |
Port Mirroring |
- One-to-One |
- Many-to-One |
- Supports Mirroring for Tx/Rx/Both |
Multicast Filtering |
- Forwards all unregistered groups |
- Filters all unregistered groups |
Configurable MDI/MDIX |
- MLD snooping v1/v2 (256 groups) |
VLAN |
802.1Q |
VLAN Group |
- Max. 256 static VLAN groups |
Configurable VID from 1 - 4094 |
Asymmetric VLAN |
Auto Voice VLAN |
- Max. 10 user-defined OUI |
- Max. 8 default OUI |
Auto Surveillance VLAN
Quality of Service (QoS)
802.1p Quality of Service |
8 queues per port |
Queue Handling |
- Strict |
- Weighted Round Robin (WRR) |
Bandwidth Control |
- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) |
QoS based on: |
- 802.1p Priority Queues |
- DSCP |
- ToS |
- IPv6 Traffic Class |
- TCP/UDP port
|
Especificaciones
| Marca | D-LINK |
| Características | Puertos 10/100 /1000BASE-TX:48 puertos|Puertos SFP:4 PuertosCapacidad de switch: 104 Gbps|Tamaño de la tabla de direcciones MAC: 16K|Buffer de paquetes: 3 MB por dispositivo|Consumo(Standby/Máximo)... |
