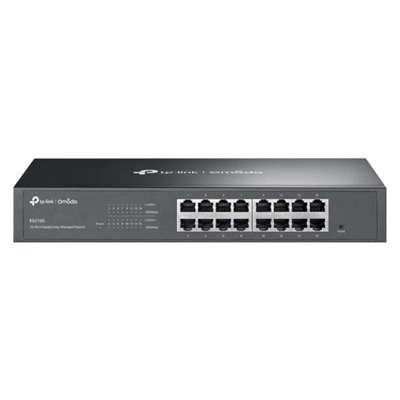

TP-Link ES216G Switch 16xGbE Metal 1U
| Marca | TP-Link |
| Modelo | NSWSAR0466 |
| Puertos | - 16 × 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) | Protección | - Surge Protection: 6kV |
| Rendimiento | - Capacidad de Conmutación: 32 Gbps | - Tasa de Reenvío de Paquetes: 23.8 Mpps | - Tabla de Direcciones MAC: 8K | - Memoria del Buffer de Paquete: 4 Mbit | - Jumbo Frame: 15 KB |
| Software | Calidad de Servicio (QoS) | - Port-based / 802.1p / DSCP QoS | - 8 Priority Queues | - Priority Schedule Mode: WRR (Weighted Round Robin) | - Queue Weight Config | - Bandwidth Control: Port-Based Rating Limit | - Storm Control: | Multiple Control Modes (kbps/pps) | Broadcast / Multicast / Unknown-Unicast Control | Características L2 | - Static Link Aggregation | - Loop Prevention / Loopback Detection | - Flow Control: 802.3x Flow Control | - Port Mirroring (One-to-One, Many-to-One, Ingress / Egress / Both) | - Port Statistics (Mirror Status, Traffic Statistics) | - 802.1ab LLDP | Multicast L2 | - IGMP Snooping (IGMP v1/v2/v3) | - Fast Leave | VLAN | - MTU VLAN | - Port-Based VLAN | - 802.1Q Tag VLAN (Máx. 32 Grupos VLAN, 4K VID) | Método de Transmisión | - Almacenar y reenviar |
| Especificaciones | - Cantidad de Ventiladores: Sin ventilador (Fanless) | - Bloqueo de Seguridad Físico | - Fuente de Alimentación: 100–240 V~50/60 Hz | - Tipo de Instalación: Escritorio o Montaje en rack | Gestión | - Omada App: Requiere el uso de Omada Hardware Controller, Omada Cloud-Based Controller o Omada Software Controller. | - Gestión Centralizada: | Omada Cloud-Based Controller | Omada Hardware Controller | Omada Software Controller | - Acceso a la nube: Requiere el uso de los controladores Omada. | - Aprovisionamiento sin contacto: Requiere Omada Cloud-Based Controller. | - Funciones de gestión: | Web-based GUI | DHCP Client | Cable Diagnostics | Automatic Device Discovery | Batch Configuration | Batch Firmware Upgrading | Unified Configuration | Certificaciones | - FCC | - CE | - RoHS | Factores Ambientales | - Temperatura de operación: -5?~50? | - Temperatura de almacenamiento: -40?~70? | - Humedad operativa: 10%~90% sin condensación | - Humedad de almacenamiento: 5%~90% sin condensación | Dimensiones | - 294 × 140 × 44 mm | Contenido | - NSWSAR0466 | - Power Cord | - Rubber Feet | - Mounting Brackets | - Screws | - Installation Guide |
Especificaciones
| Marca | TP-LINK |
| Puertos | 16 × 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |Protección| Surge Protection: 6kV |
| Rendimiento | Capacidad de Conmutación: 32 Gbps | Tasa de Reenvío de Paquetes: 23.8 Mpps | Tabla de Direcciones MAC: 8K | Memoria del Buffer de Paquete: 4 Mbit | Jumbo Frame: 15 KB |
| Especificaciones | Cantidad de Ventiladores: Sin ventilador (Fanless) | Bloqueo de Seguridad Físico | Fuente de Alimentación: 100–240 V~50/60 Hz | Tipo de Instalación: Escritorio o Montaje en rack |Gestió... |
| Software | Calidad de Servicio (QoS)| Port-based / 802.1p / DSCP QoS | 8 Priority Queues | Priority Schedule Mode: WRR (Weighted Round Robin) | Queue Weight Config | Bandwidth Control: Por... |
