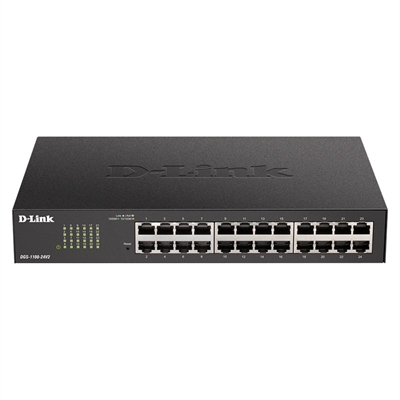

D-Link DGS-1100-24V2/E Switch 24xGb
| Marca | D-Link |
| Modelo | DGS-1100-24V2/E |
| Características Hardware | General | - Versión de hardware: B1 | - Tamaño: 11" de escritorio / montaje en Rack, altura de 1U. | - Nº de puertos: 24 - 10/100/1000 Mbps | - Función de los puertos: | Auto MDI / MDIX | IEEE 802.3x Flow Control admite el modo Full-Duplex | Admite half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps) | Rendimiento | - Capacidad de conmutación: 48 Gbps | - Velocidad máxima de reenvío: 35,71 Mpps | - Tamaño de la tabla de direcciones MAC: 8K entradas | - Búfer de paquetes: 512 Kbits | - Memoria Flash: 8 Mbyte | Alimentación | - Consumo típico: 10.37 W | - Consumo máximo: 13.94 W | Físicas | - Entrada de energía: 100 a 240 V CA | - MTBF: 2.406.109 horas | - Acústica: 0 dB (A) | - Disipación de calor: 47,57 BTU/hr | - Peso: 1,63 kg | - Dimensiones: 280 x 180 x 44 mm | - Ventilación: sin ventilador |
| Características Software | VLAN | - Port-based VLAN | - 802.1Q tagged VLAN | - Auto Surveillance VLAN | - Voice VLAN | - Management VLAN | - Asymmetric VLAN | - VLAN Group | - Supports 128 static VLAN groups | - Max. 4094 VIDs | Caracteristicas L2 | - Flow Control | - 802.3x Flow Control | - HOL Blocking Prevention | - Jumbo Frames up to 9216 Bytes | - IGMP Snooping | - IGMP v1/v2/v3 awareness Snooping | - Supports 64 Groups | - IGMP Snooping Querier | - Loopback Detection | - Cable Diagnostics | - LLDP | - Port Mirroring | - One-to-One | - Many-to-One | - Statistics | - Tx Ok | - Tx Error | - Rx Ok | - Rx Error | - Spanning Tree Protocol | - 802.1D STP | - 802.1w RSTP | Quality of Service (QoS) | - 802.1p Quality of Service | - 4 queues per port | - Queue Handling | - Strict | - Weighted Round Robin (WRR) | - Port-based Bandwidth Control (Rate Limiting) | - Ingress: 8 Kbps | - Egress: 64 Kbps | Seguridad | - D-Link Safeguard | - Traffic Segmentation | - Broadcast/Multicast/Unknown Unicast Storm Control | - DoS Attack Prevention | - SSL | Gestión | - Web-based GUI (Supports IPv4/IPv6) | - Client-based Utility (D-Link Network Assistant Utility) | Estándares MIB/RFC | - RFC768 UDP | - RFC791 IP | - RFC792 ICMP | - RFC793 TCP | - RFC826 ARP | - RFC1213 MIB II | - RFC1493 Bridage MIB | - RFC1907 SNMPv2 MIB | - RFC1215 MIB Traps Convention | - RFC2233 Interface Group MIB | - RFC2665 Ether-like MIB | - RFC4363 IEEE 802.1p MIB | - ZoneDefense MIB | - Private MIB | - RFC951 BootP client | - RFC1542 BootP/DHCP client | - RFC2236 IGMP Snooping |
Especificaciones
| Marca | D-LINK |
| Características Hardware | General|Versión de hardware: B1|Tamaño: 11" de escritorio / montaje en Rack, altura de 1U.|Nº de puertos:2410/100/1000 Mbps|Función de los puertos:|Auto MDI / MDIX|IEEE 802.3x Flow Control admite e... |
| Características Software | VLAN|Port-based VLAN|802.1Q tagged VLAN|Auto Surveillance VLAN|Voice VLAN|Management VLAN|Asymmetric VLAN|VLAN Group|Supports 128 static VLAN groups|Max. 4094 VIDs|Caracteristicas L2|Flow Control|8... |
